| Part Number | Power Switch | IOH/IOL (A) | Output VCC/VDD (V) | Input VCC (V) | Prop. Delay（ns） | Split Out | ASC | Soft Turn Off | CMTI (kV/μs) Min. | VISO(Vrms) | Operating Temp （℃） | Package Group | Packing/QTY | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

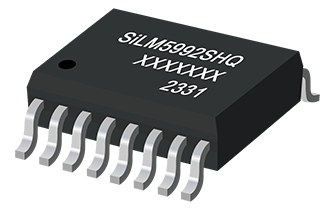

| SiLM59xx系列（30V, 12A 带主动保护的单通道隔离驱动器） | 下载 | |||||||||||||
| SiLM5932SHOCG-DG | IGBT/SiC | 12.0/12.0 | 13-30 | 3-5.5 | 90 | Y | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5992SHCG-DG | IGBT/SiC | 12.0/12.0 | 13-30 | 3-5.5 | 90 | Y | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5991SHCG-DG | IGBT/SiC | 12.0/12.0 | 13-30 | 3-5.5 | 90 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5932SHOCG-AQ | IGBT/SiC | 12.0/12.0 | 13-30 | 3-5.5 | 90 | Y | Y | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5992SHCG-AQ | IGBT/SiC | 12.0/12.0 | 13-30 | 3-5.5 | 90 | Y | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5991SHCG-AQ | IGBT/SiC | 12.0/12.0 | 13-30 | 3-5.5 | 90 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |

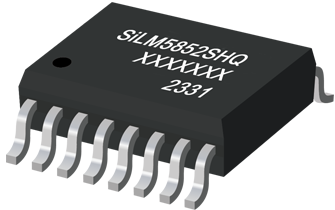

| SiLM585x系列（30V, 3.0A 带主动保护的单通道隔离驱动器） | 下载 | |||||||||||||
| SiLM5851NHCG-DG | IGBT/SiC | 3.0/6.0 | 13-30 | 3-5.5 | 90 | - | - | - | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5852SHCG-DG | IGBT/SiC | 3.0/6.0 | 13-30 | 3-5.5 | 90 | Y | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SiLM5852SHCG-AQ | IGBT/SiC | 3.0/6.0 | 13-30 | 3-5.5 | 90 | Y | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |

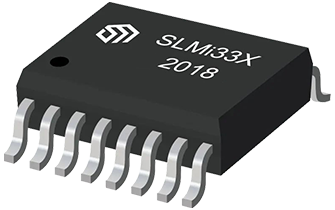

| SLMi33x系列（40V, 1.5A - 4A 兼容光耦的单通道带保护功能的隔离驱动器） | 下载 | |||||||||||||
| SLMi330HCG-DG | IGBT/SiC | 1.5/1.5 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi330CG-DG | IGBT/SiC | 1.5/1.5 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi331CG-DG | IGBT/SiC | 1.5/1.5 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi331HCG-DG | IGBT/SiC | 1.5/1.5 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi332CG-DG | IGBT/SiC | 2.5/2.5 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi332HCG-DG | IGBT/SiC | 2.5/2.5 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi333CG-DG | IGBT/SiC | 2.5/2.5 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi333HCG-DG | IGBT/SiC | 2.5/2.5 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi334HCG-DG | IGBT/SiC | 4.0/4.0 | 14-40 | 3-18 | 80 | - | - | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi335CG-DG | IGBT/SiC | 4.0/4.0 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi335HCG-DG | IGBT/SiC | 4.0/4.0 | 14-40 | 3-18 | 80 | - | - | Y | 150 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
| SLMi334CG-DG | IGBT/SiC | 4.0/4.0 | 14-40 | 3-18 | 80 | - | - | Y | 100 | 5000 | –40 ~ 125 | SOP16W | Reel/1500 | |
